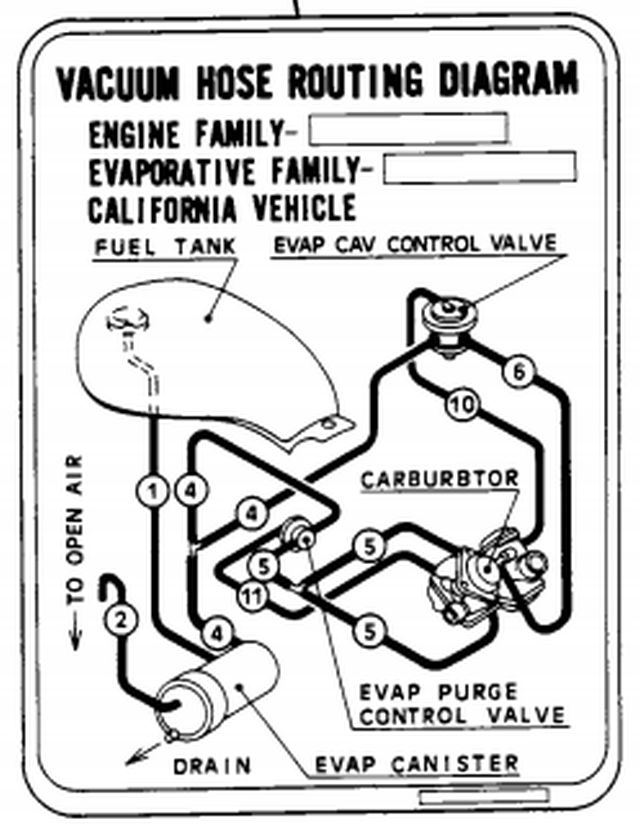

This is the diagram of the vacuum hose routing, that is found in the service manual.
	 The only thing not shown here is the AIS hoses that are found on california bikes. they are part of the same system and can be removed and blocked off with our AIS plates.&#xA0;
	 The Evap Canister is also known as the charcoal canister.&#xA0;
