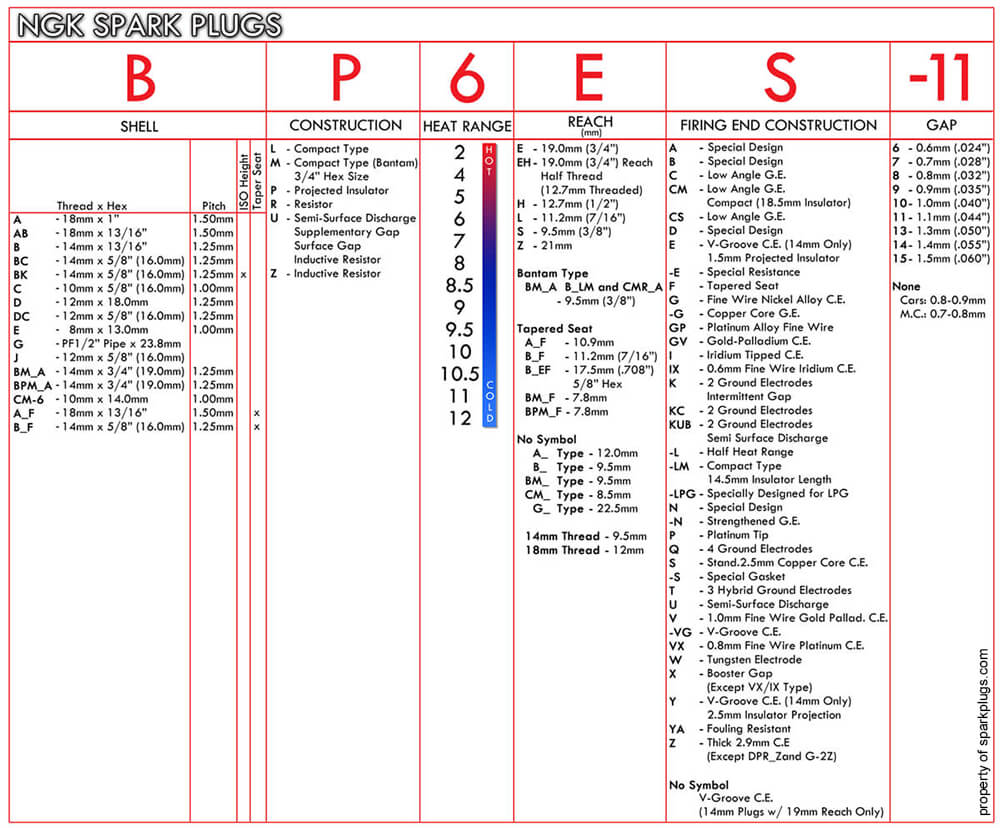

This chart shows you what each letter and number on an NGK spark plug means!&#xA0;<img src="https://s3.amazonaws.com/helpscout.net/docs/assets/5a6f7e612c7d3a1eaf1e12ff/images/60a96df81df47a61c5ad4451/file-C4CZDw1xuU.png">

This chart shows you what each letter and number on an NGK spark plug means!&nbsp;<img src="https://s3.amazonaws.com/helpscout.net/docs/assets/5a6f7e612c7d3a1eaf1e12ff/images/60a96df81df47a61c5ad4451/file-C4CZDw1xuU.png">

How to Read NGK Spark Plugs Numbering System
